This photo shows the twin-span Delaware Memorial Bridge (I-295 and US 40) looking east (north) toward Pennsville, New Jersey. (Photo by Dave Watts.)

Type of bridge:
Construction started (original span):
Opened to traffic (original span):
Construction started (parallel span):
Opened to traffic (parallel span):
Length of main spans:
Length of each side span:
Length, anchorage to anchorage:
Total length of bridge and approaches (both spans):
Width of bridge (both spans):
Width of roadway (both spans):
Number of traffic lanes (each span):
Height of towers above mean high water:
Clearance at center above mean high water:
Number of cables (each bridge):
Length of each of two cables:
Diameter of each of two cables:
Total number of wires per cable:
Foundation type:
Concrete used in caissons (both spans):
Concrete used in anchorages (both spans):
Cost of original structure:
Cost of companion structure:

Suspension
June 15, 1948
August 16, 1951
April 15, 1964
September 12, 1968
2,150 feet (655.3 meters)
750 feet (228.6 meters)
3,650 feet (1,112.5 meters)
13,200 feet (4,023.4 meters)
70 feet (21.3 meters)
52 feet (15.8 meters)
4 lanes (8 lanes total)
417 feet (127.1 meters)
188 feet (57.3 meters)
2 cables
4,100 feet (1,249.7 meters)
20 inches (50.8 centimeters)
8,284 wires
Caisson
108,000 cubic yards (82,572 cubic meters)
92,800 cubic yards (70,951 cubic meters)
$44,000,000
$77,000,000

Passenger car cash toll:
Passenger car EZ-Pass toll:

$4.00 (southbound / westbound only)
$4.00 (southbound / westbound only)

Frequent traveler discounts are available to NJ EZ-Pass holders.

FULFILLING A LONG-SOUGHT DREAM: Since the 1920s, residents of Delaware and New Jersey had pressured officials for a fixed crossing between southern New Jersey and the Wilmington-New Castle area of Delaware. With the successful opening of the new Delaware River (Benjamin Franklin) Bridge some 30 miles upstream in Philadelphia, such a crossing appeared feasible. The proposed Delaware-New Jersey span was estimated to cost $12 million. As an interim measure, the two states established a ferry service between Pennsville, New Jersey and New Castle, Delaware (near the site of the current bridge) in 1926.

However, the pro-bridge forces faced two decades of opposition. First, the Philadelphia port authorities and commercial organizations fought against the bridge in Congress. These groups believed that erection of bridge would be an impediment to shipping, since all ships bound for the Philadelphia-Camden area would have to pass under the span. Specifically, the Atlantic Deep Waterways Association said the bridge piers and clearances would pose a "menace to navigation." Second, the War Department had concerns that the proposed crossing would be seaward of the Philadelphia Navy Yard. It would not only be vulnerable to attack in the event of war, but also block access to the Navy Yard.

Meanwhile, the explosive growth in postwar vehicular traffic resulting in hours-long delays on both sides of the Delaware River provided ammunition for the pro-bridge forces, which ultimately won the two-decade-long battle for the bridge. From the archives of the U.S. Senate Committee on Commerce:

The public demand for this bridge is steadily increasing, and its construction is of vital importance to the ever-increasing local and long-haul vehicular traffic along the Atlantic Seaboard. This traffic serves commerce and business, both in war and in peace. The building of the bridge appears as a public necessity in the full development of the highway system along the East Coast, and it is believed that this necessity should be met as promptly as possible. Both the War and Navy departments have recently filed reports indicating that they will interpose no objections to the proposed facility. The Federal Works Agency has also reported favorably to the proposal.

In 1945, the state highway departments of Delaware and New Jersey authorized construction of a Delaware River crossing between New Castle and Pennsville. On July 13, 1946, Congress authorized construction of the Delaware Memorial Bridge. Construction of the first Delaware Memorial Bridge span began on February 1, 1949.

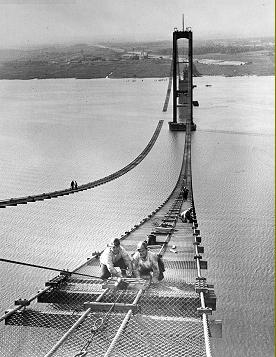

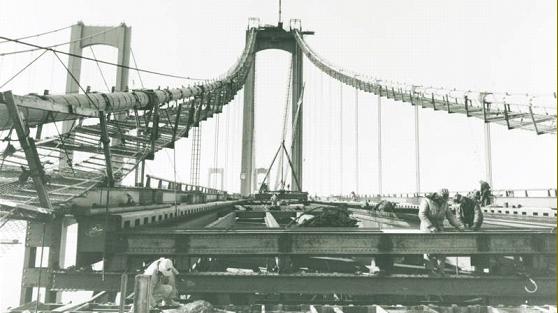

Workers help construct the main cables in 1950 (left photo) and raise a truss 160 feet above the water in early 1951 (top photo).(Photos by Peter Stackpole, via the "Bridges Now and Then" Facebook group.)

DESIGN AND CONSTRUCTION: Designed by famed bridge designer Othmar Ammann, the Delaware Memorial Bridge held true to the design standards, such as deep stiffening trusses and streamlined towers, that characterized his other postwar works including the Walt Whitman Bridge (opened in 1957), the Throgs Neck Bridge (opened in 1961) and the Verrazano-Narrows Bridge (opened in 1964).

From tower to tower, the main span of the Delaware Memorial Bridge measures 2,150 feet long. Including approaches, the bridge measures approximately two and one-half miles long. The two 4,100-foot-long main cables are 20 inches in diameter. Each cable is composed of 19 strands, and each strand is made up of 436 separate 3/16-inch-diameter steel wires. Together, approximately 12,000 miles of wire were spun for the span. The main cables are spun across the bridge's two 417-foot-high towers, which together help suspend the roadway 188 feet above the Delaware River. As required by the Secretaries of the Army and Navy, the bridge was constructed with a high clearance to allow even the tallest ships to enter the port of Philadelphia-Camden and the Philadelphia Navy Yard. The roadway accommodated four 12-foot-wide traffic lanes, two lanes in each direction.

The bridge foundation on the Delaware side measures 95 feet by 221 feet, while the foundation on the New Jersey side measures 99 feet by 225 feet. The foundations were first prefabricated in the New Jersey shipyard and towed downriver. Next came the concrete pour for each caisson - approximately 27,000 tons - that lasted seven days, the longest continuous pour until that time. The foundations were submerged 70 feet into the Delaware side of the river, and 110 feet into the New Jersey side.

The construction of the anchorages was also massive: both anchorages each required 23,200 tons of concrete. Since the anchorages were also built in the Delaware River, their placement required the construction of two cofferdams, each measuring 100 feet by 225 feet. The cofferdams were sunk 70 feet below the low water mark.

On April 22, 1951, the steel trusses from each side of the bridge were connected, paving the way for roadway construction. While the deck paving was underway, work on the Delaware and New Jersey approaches was underway.

The original Delaware Memorial Bridge opened on August 16, 1951, at a cost of $44 million and four lives. When it opened, the bridge, which featured the sixth-longest main suspension span in the world, was named the most beautiful large steel span of 1951 by the American Institute of Steel Construction. Governor Driscoll of New Jersey and Governor Carvel of Delaware dedicated the new bridge to the World War II dead of their respective states.

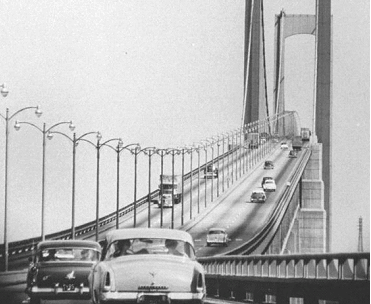

This photo from the mid-1950s shows the Delaware Memorial Bridge looking east (north) toward New Jersey. (Photo by Delaware River and Bay Authority.)

BUILT FOR THE EXPRESSWAY ERA: Including approaches, the Delaware Memorial Bridge measures two and one-half miles long. Like other postwar bridge projects, the main span and approaches were designed for the expressway era. On the New Jersey side, the bridge connects to the New Jersey Turnpike, I-295 and US 40. On the Delaware side, the bridge connects to I-95 and I-495, among other arterial routes. A three-foot-wide steel median barrier separated opposing traffic flows.

Three months after the new bridge was dedicated, the 118-mile-long New Jersey Turnpike was opened to traffic. Together with the turnpike, the bridge, which had a 75-cent toll when it opened, provided a new bypass from the Northeast to the South. By 1963, the toll complex was extended south along the John F. Kennedy Memorial Highway (I-95) to Baltimore. A third toll road that was to connect the Delaware Memorial Bridge with the Chesapeake Bay-William Preston Lane Jr. Memorial Bridge, the "Maryland Expressway" (which was to parallel US 301), was never constructed.

The Delaware Memorial Bridge was an immediate success. When it opened in 1951, engineers estimated that 3.6 million vehicles would use the four-lane bridge. By 1952, annual traffic volume had already reached 6.7 million vehicles, and by the 1960's, more than 15 million vehicles crossed the bridge each year. With bottlenecks growing on both sides of the Delaware River, officials at the newly created Delaware River and Bay Authority (DRBA) authorized construction of a second suspension bridge at the Pennsville-New Castle site.

THEY APPEAR THE SAME, BUT LOOK CLOSELY: Construction of the second Delaware Memorial Bridge, located 250 feet north of the original span, began in mid-1964. To the naked eye, the second span was identical to the existing span. The new bridge was constructed with the same total length of 3,650 feet (a 2,150-foot-long main span and 750-foot-long side spans) as the original bridge. However, there were the following differences in design, construction methods and safety:

  • The original bridge was constructed with four 12-foot-wide lanes. Because the cars of the era were wider, the new span was constructed with four 13-foot-wide lanes.

  • A new signal system was installed to control traffic so that traffic could be switched from lane to lane. The system could also allow for reverse traffic flow in certain lanes.

  • The lighting system installed on the new bridge was brighter than the one installed on the original bridge.

  • On the original span, sidewalks were open gratings. Sidewalks on the new bridge were constructed of solid concrete, adding structural strength.

The second Delaware Memorial Bridge, which was constructed at a cost of $77 million, was dedicated on September 12, 1968 to the soldiers of New Jersey and Delaware who lost their lives in the Korean and Vietnam wars. Once the new bridge opened, the original span was closed for 15 months to bring it up to the same standards as its newer counterpart. During the reconstruction period, the old steel median barrier was removed, and the four lanes were widened to 12 feet, nine inches.

When the original bridge reopened to traffic on December 29, 1969, it now carried four lanes of northbound traffic. The new bridge, which had carried two lanes of traffic in each direction during rehabilitation of the original span, now carried four lanes of southbound traffic.

A CLOSE CALL: On July 9, 1969, not long after the completion of the twin span, the oil tanker Regent Liverpool operated by Texaco struck the fender system protecting the tower piers of the bridge. Although the bridge itself suffered no structural damage, the cost to repair the fenders totaled $1 million.

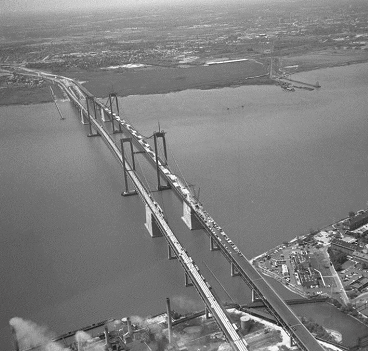

TOP: Cable spinning on the second Delaware Memorial Bridge is shown in this 1967 photo. LEFT: The second Delaware Memorial Bridge nears completion in this 1968 photo. (Photos by Delaware River and Bay Authority.)

THE DELAWARE MEMORIAL BRIDGE TODAY: The two Delaware Memorial Bridges stand as the world's longest twin (side-by-side) suspension spans. Taken individually, the 2,150-foot-long main suspension spans are the 26th longest in the world. According to the DRBA, approximately 90,000 vehicles per day (AADT) cross this important link in the main artery serving the Boston-to-Washington megalopolis.

There is an interesting state boundary issue at the site of the Delaware Memorial Bridge. Phil Case, New Jersey contributor to phillyroads.com, provides the following detail on the New Jersey-Delaware border:

In most cases of river boundaries between states, the state line is located in the middle of the river. However, Delaware's northern state boundary was originally fixed as a specified 12-mile radius from New Castle. That is why Delaware's northern boundary looks like a semi-circle, because it is one. The line can be extended into the river, and court cases long ago established that the state of Delaware controls the whole width of the Delaware River, up to the low-tide level on the New Jersey shoreline. The bridge spans have small signs on their eastern ends marking the Delaware-New Jersey border.

In 1992, the DRBA reconstructed the New Castle toll plaza to permit one-way toll collection in the southbound direction. (Northbound motorists no longer pay a toll.) On July 18, 2001, the DRBA implemented the EZ-Pass electronic toll collection system at the New Castle toll plaza. With the expansion of the EZ-Pass system, motorists could travel between Maryland and Massachusetts without having to stop to pay for tolls.

Between 2007 and 2009, the DRBA plans spent $58 million to resurface the bridge decks, refurbish the expansion joints and bearing assemblies, upgrade the electrical system, and replace the elevators in all four towers. The DRBA expects to receive $15 million in Federal funds for the new fenders.

Between 2016 and 2018, the DRBA spent $35 million to install a dehumidification system in the bridge's four anchorages to prevent corrosion in the main cables. The work included repainting the main cables and installing airtight wraps around them to further reduce humidity. Ideally, the humidity levels inside the main cables should be below 30 percent in order to limit corrosion.

THE WAR MEMORIAL: Each year since 1951, when the first Delaware Memorial Bridge opened to traffic, special ceremonies have been held on Memorial Day and Veterans' Day at the bridge's War Memorial area to commemorate the sacrifices of U.S. war veterans. Located in New Castle, Delaware, the War Memorial area contains a lasting wall with the names of 15,000 service men and women who were killed in World War II, the Korean War, the Vietnam War and the Gulf War. There is also a reflective pool and a "soldier statue" erected in their memory.

UP IN SMOKE: On October 23, 2016, a recreational vehicle (RV) traveling on the northbound span caught fire, closing down the span. The RV, which was owned by "Weed World Candies," carried marijuana-flavored candies. Prior to the fire, the RV was used to promote the legalization of marijuana.

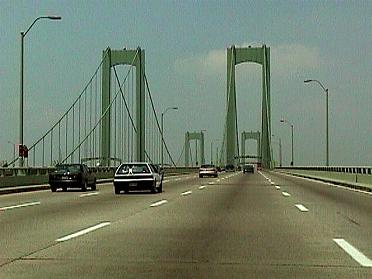

This 1998 photo shows the southbound Delaware Memorial Bridge with the original 1968 lightpoles. The lightpoles were replaced in the early 2000s. (Photo by Jim K. Georges.)

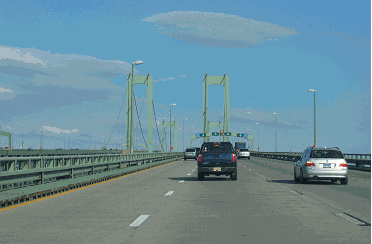

This 2010 photo shows the northbound Delaware Memorial Bridge. Part of I-295 and US 40, the bridge serves as an important artery in the Northeastern megalopolis. (Photo by Steve Anderson.)

SOURCES: "The Wilmington Bridge" by J. Hampton Moore, The Philadelphia Inquirer (2/04/1929); "Toll Bridge Across the Delaware River Near Wilmington, Delaware," U.S. Senate Committee on Commerce (1946); "Delaware Bridge Nears Completion" by William G. Weart, The New York Times (4/22/1951); "The New Bridge" by C. Edward Nicodemus, The Philadelphia Inquirer (5/13/1951); "Delaware Bridge To Open" by Kalman Seigel, The New York Times (8/11/1951); "Delaware Memorial Bridge," Keystone Motorist-Keystone Automobile Club (August 1951); "Big Delaware-New Jersey Bridge Dedicated as Memorial to Heroes" by Kalman Seigel, The New York Times (8/16/1951); "High Road from the Hudson to the Delaware" by Paul J. C. Friedlander, The New York Times (11/25/1951); "A Delaware Span To Open" by Joseph C. Ingraham, The New York Times (9/07/1968); Great American Bridges and Dams by Donald C. Jackson, Preservation Press-John Wiley and Sons (1988); Engineers of Dreams by Henry Petroski, Vintage Books-Random House (1995); "Overhaul of I-295 Gets Rolling" by Prashant Gopal, The Wilmington News-Journal (7/18/2000); "Caution: EZ-Pass Confusion Ahead" by Prashant Gopal, The Wilmington News-Journal (7/08/2001); Delaware River and Bay Authority; Delaware Department of Transportation; New Jersey Department of Transportation; Chris Blaney; Phil Case; Raymond C. Martin; Alex Nitzman; Sandy Smith; Christof Spieler; Jeff Taylor; Stéphane Theroux; Rush Wickes; William F. Yurasko.
